钎焊金刚石磨头：

工艺：利用液态钎料填满钎焊金属结合面的间隙面而形成，通过熔点高低，液态流动，把金刚石镶嵌在基体表面。

用途：用于切割打磨硬质合金、混凝土、铸铁、石材（花岗岩、大理石、石英石等多种）、陶瓷、树脂、磁性材料、玻璃等，也可用于木雕、石雕、玉雕、陶瓷灯工艺品的打磨抛光。

特性：打磨速度快，工作时间长，不崩边。是一种极好的小区域磨削或把小面积磨成碎片的带柄小磨具，可用作内圆、圆角、沟槽、弧面、锥面等特殊表面的磨削。

设备：可应用于电磨机、吊磨机、手电钻等。

Vacuum Brazed Diamond Sculpture Grinding Head:

Technology: Take use of the melting point of solder is lower than the parent metal, melting solder and wetting parent metal, and densely filling the soldering seam, solder and parent metal bonding each other, formed a strong connection.

Application: Use for grinding different kind of glass, granite, marble and other stone; wall brick and floor tile, sanitary ware, ceramic handle, and some Hard plastic products, etc.

Characteristic: Sharp, better abrasion resistance, strong bonding, not easy to spall off. It is the excellent small shank grinding tools, grinding can be used as the inner circle, rounded, trench, arc, cone and other special surface.

钎焊金刚石雕刻刀：
主要用于各种石材上刻字，雕刻图案等
石材雕刻刀的刀型大概地可以分为中心尖刀，平底尖刀，球头直刀，平底直刀，锥度球头刀，锥度平底刀等几类。也可以根据客户要求定制

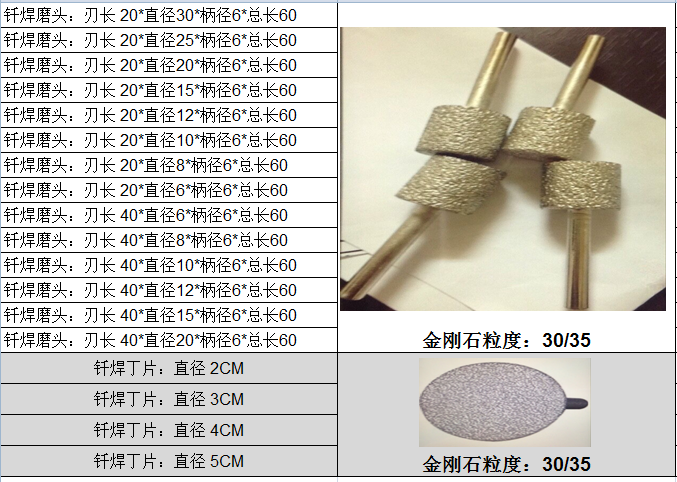

规格：3*3, 3*6, 6*6 ,6*8, 6*10等多种形状，金刚石粒度一般为46目，也可按顾客要求定制。

20支套装常规规格如下：

平头圆柱6、8、10mm， 圆头圆柱6、8、10mm，锥形平头8mm，圆锥形10mm，伞形8、10mm，圆球形8、10mm，子弹头形6、8、10mm， 尖形6mm，椭圆形8mm，弧形尖顶形10mm，钉形10mm，T形10mm. 长度为6*60mm，可以根据客人的要求定制规格

The grinding efficiency of brazed diamond tools is 3 times more than electroplating tools, is 3-5 times more than the diamond sintered product. The service life is 3 times more than the electroplating tools. The diamond of brazed tools does not fall off after working; it can keep the surface morphology.

20 sets of conventional specifications are as follows:

Flat bottom cylinder type: 6, 8, 10mm; Round bottom cylinder type:6, 8, 10mm ; Flat bottom conical: 8mm; Conical: 10mm; Umbrella type: 8, 10mm; Spherical type: 8, 10mm; bullet shaped: 6, 8, 10mm; Pointed: 6mm; Oval: 8mm; Curved spire shaped: 10mm; Nail shaped: 10mm; T-shaped:10mm. The length of are 6*60mm.

We can customize different types according to the requirements of customers.
